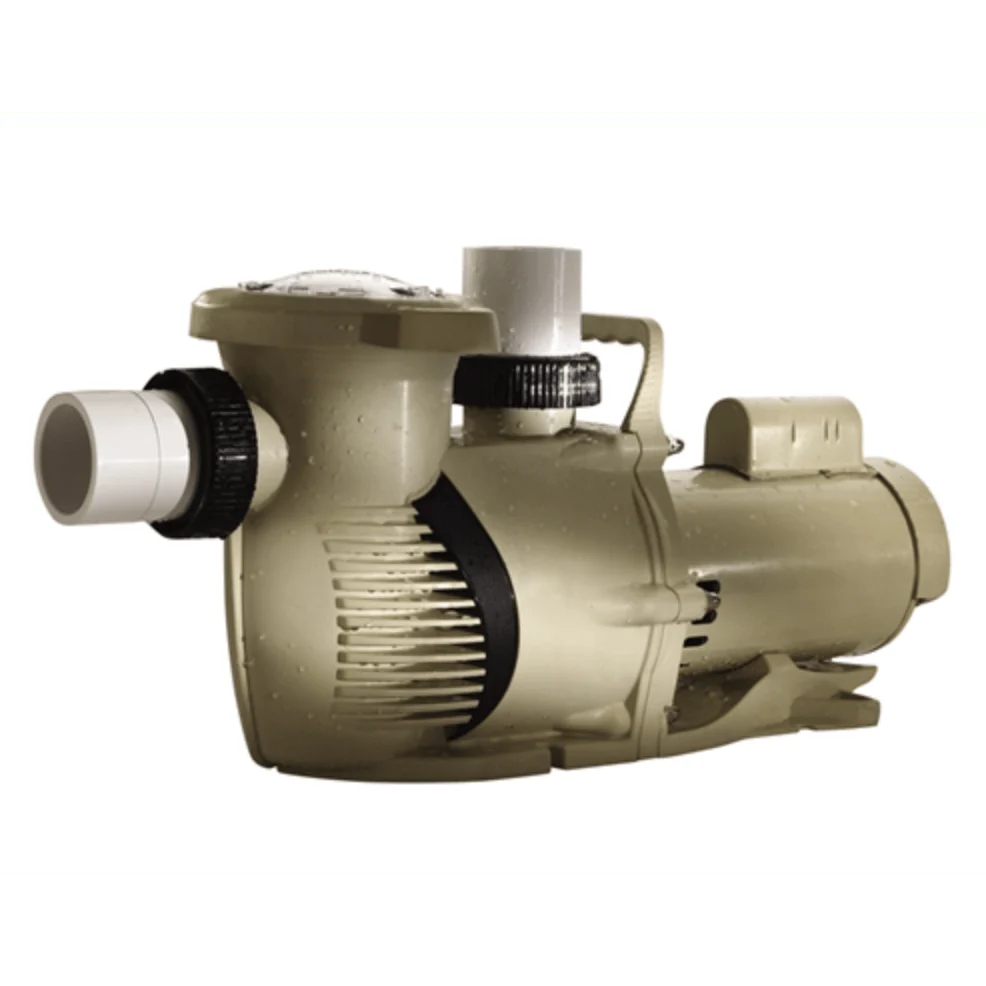

Pentair 5 HP WhisperFloXF Single Speed TEFC Pump XFET-20 022034
THE MOST POWERFUL, EFFICIENT WHISPERFLO® EVER.
The Pentair WhisperFloXF® commercial pool pump was developed using the most advanced engineering tools: CFD (Computational Fluid Dynamics) and FEA (Finite Element Analysis). The proprietary impeller design delivers higher precision concentricity for increased efficiency. The proprietary hydraulic isolator smooths the water flow inside the volute, increasing the efficiency. With capabilities over 200 GPM, WhisperFloXF is an ideal choice for many residential and commercial applications, especially those involving water features, negative edges, and slides.
- Drop-in replacement for original WhisperFlo and optional riser plate enables easy Challenger replacement
- A modular plumbing system means less need to cut and glue pipe
- External port threading and tool-free union nuts need only hand-tightening
- Easy-carry handle; easily removable, ergonomic lock ring; and see-through lid for easy basket inspection
- Available model:Â XFET-20 WhisperFloXF Single Speed TEFC Pump (022034)
Documents
- Brochure
- Installation & User Guide
- Replacement Parts
Specifications:
- Brand: Pentair
- Amps High Speed: 20
- Amps Low Speed: 18.8
- Commercial, Residential, or Professional: Commercial
- Weight: 67 pounds
- Flow Rate Max: 190 gal/min
- Green or Energy-Efficient Product: True
- Horsepower: 5 horsepower
- Motor Speed: 1-Speed
- Phase: Single
- Service Factor: 1
- Service Factor HP: 5
- Thrust HP: 5
- Voltage: 208V, 230V
- UPC Code: 788379867140
TEFC SUPER-DUTY SINGLE SPEED: 022032, 022033, 022034
Original: $3,599.00
-65%$3,599.00
$1,259.65Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
THE MOST POWERFUL, EFFICIENT WHISPERFLO® EVER.
The Pentair WhisperFloXF® commercial pool pump was developed using the most advanced engineering tools: CFD (Computational Fluid Dynamics) and FEA (Finite Element Analysis). The proprietary impeller design delivers higher precision concentricity for increased efficiency. The proprietary hydraulic isolator smooths the water flow inside the volute, increasing the efficiency. With capabilities over 200 GPM, WhisperFloXF is an ideal choice for many residential and commercial applications, especially those involving water features, negative edges, and slides.
- Drop-in replacement for original WhisperFlo and optional riser plate enables easy Challenger replacement
- A modular plumbing system means less need to cut and glue pipe
- External port threading and tool-free union nuts need only hand-tightening
- Easy-carry handle; easily removable, ergonomic lock ring; and see-through lid for easy basket inspection
- Available model:Â XFET-20 WhisperFloXF Single Speed TEFC Pump (022034)
Documents
- Brochure
- Installation & User Guide
- Replacement Parts
Specifications:
- Brand: Pentair
- Amps High Speed: 20
- Amps Low Speed: 18.8
- Commercial, Residential, or Professional: Commercial
- Weight: 67 pounds
- Flow Rate Max: 190 gal/min
- Green or Energy-Efficient Product: True
- Horsepower: 5 horsepower
- Motor Speed: 1-Speed
- Phase: Single
- Service Factor: 1
- Service Factor HP: 5
- Thrust HP: 5
- Voltage: 208V, 230V
- UPC Code: 788379867140
TEFC SUPER-DUTY SINGLE SPEED: 022032, 022033, 022034
