Nidec 2.7HP TEFC Neptune Variable Speed Pump Motor 230V 48Y NPTQ270

Nidec US Motors Neptune™ Variable Speed Pool Pump Motor

Upgrade your old single-speed pump motor to the energy-efficient Neptune™. This all-in-one unit features a built-in motor, controller, and user interface for simple programming and operation.

Great replacement for Jandy FloPro 2.7 and other square face pumps

Key Benefits:

• Easy Installation: Drop-in replacement—just connect power. No complex wiring required.
• Energy Efficient: Save power with customizable speeds (600–3450 RPM) and up to 80%+ efficiency.
• Quiet Operation: Runs significantly quieter than standard motors, especially at lower speeds.

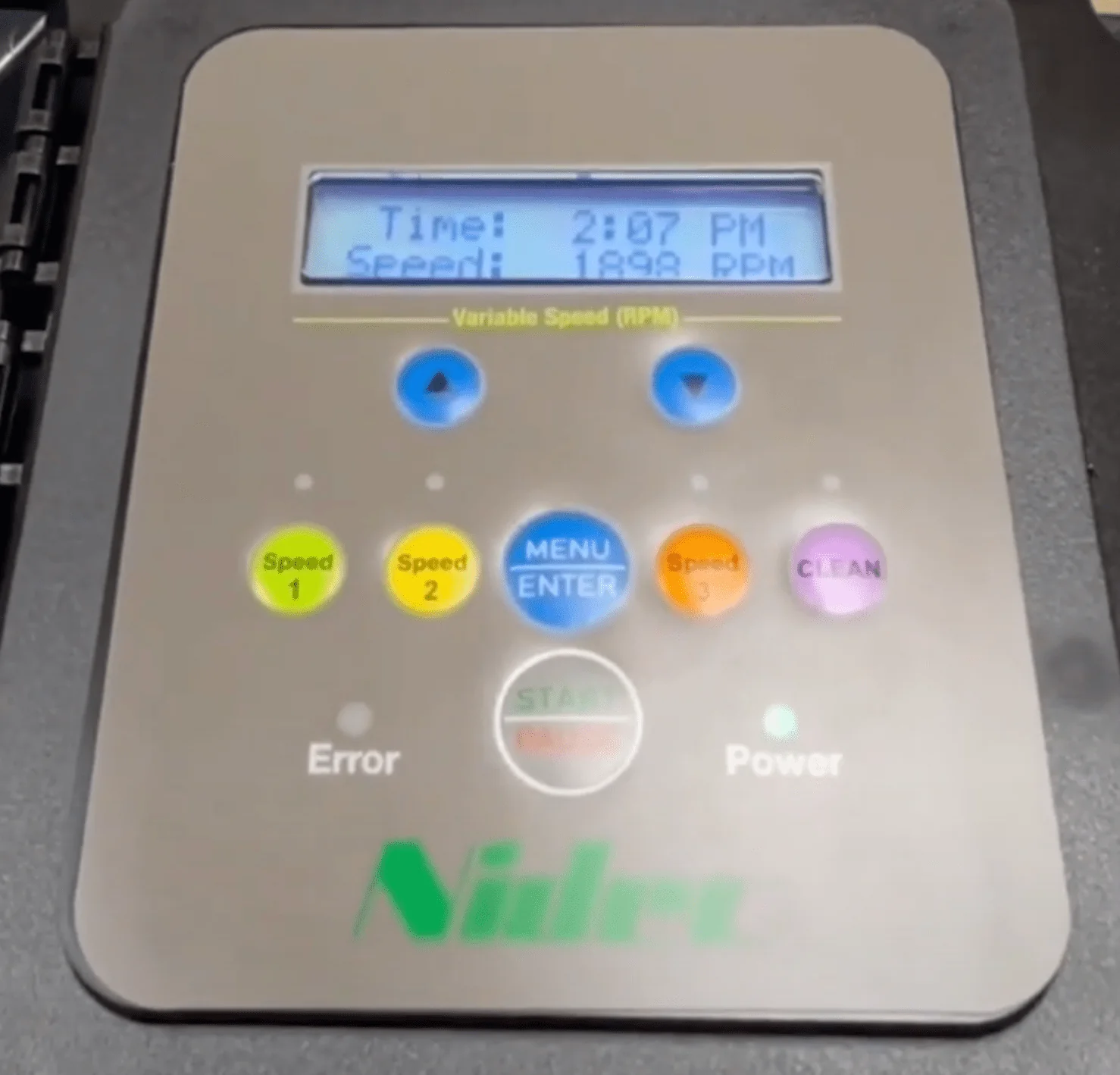

• User-Friendly Controls: Built-in UI with Quick Start guide and a pre-set factory run schedule—just set the time.
• Durable Design: Finned aluminum housing, IPX5 water protection rating, built for long outdoor life.
• Smart Features:
  • Auto cold-weather mode to help prevent pipe damage
  • Up to 7 programmable daily schedules
  • Adjustable priming speed and time
  • Keypad lockout for tamper prevention

Specs:

• Total Horsepower: 1.25 to 2.70 THP
• Voltage: Single-phase; 1.25 & 1.65 THP models support 115V/230V
• Mounting: Square flange or C-flange 56J
• Rotation: CCW (viewed from motor shaft end)
• Frequency: 50/60 Hz

Perfect for homeowners who want to boost energy efficiency without replacing their entire pump.

Support Documents:

• Installation and Operation Manual
• NEPTUNE™ Programmable Pool Pump Motor/Control Installation and Operation Manual Model: 1.25HP
• NEPTUNE™ Programmable Pool Pump Motor/Control Installation and Operation Manual Models: 1.65 THP, 2.25 THP, and 2.7 THP
• Neptune VSP Pool Motor
