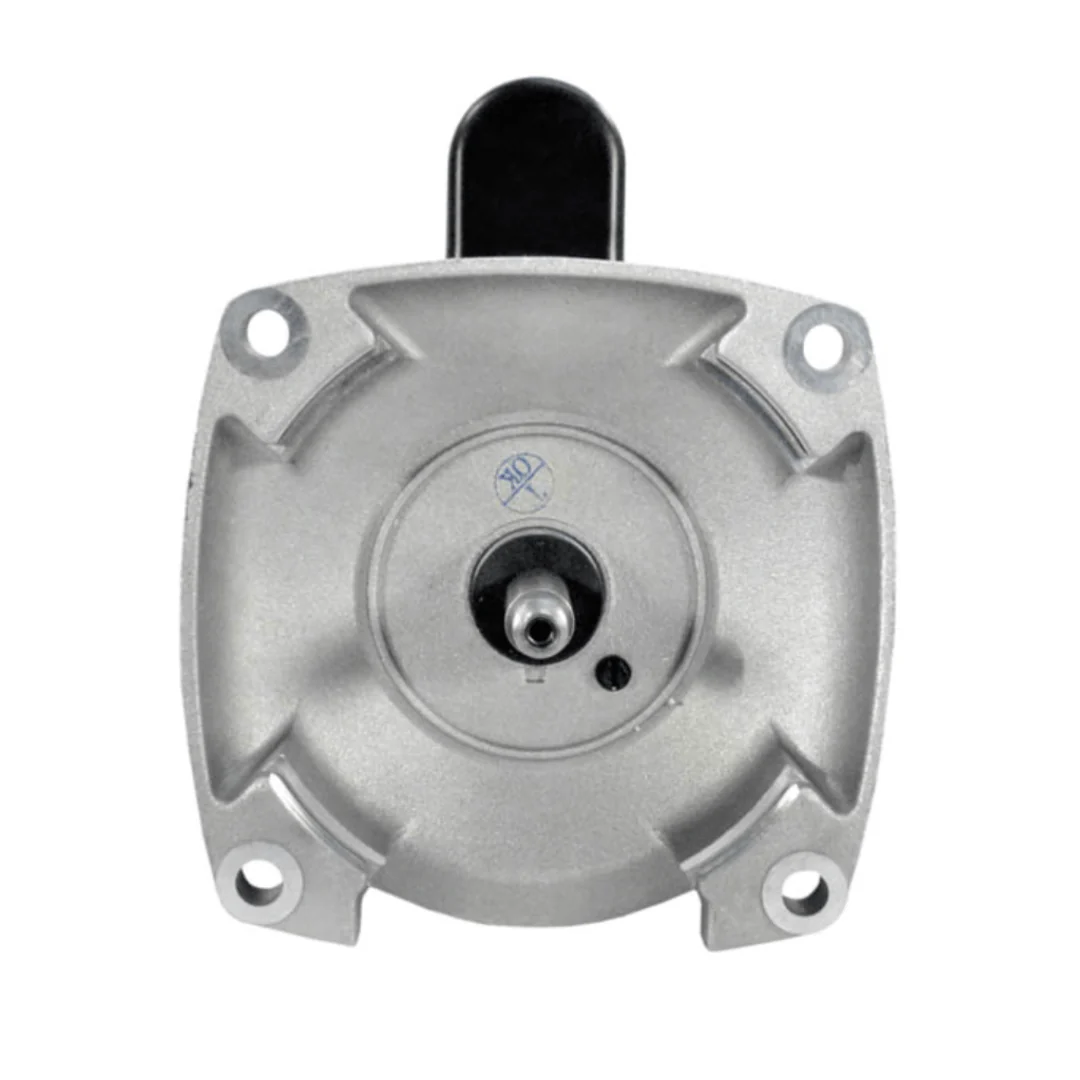

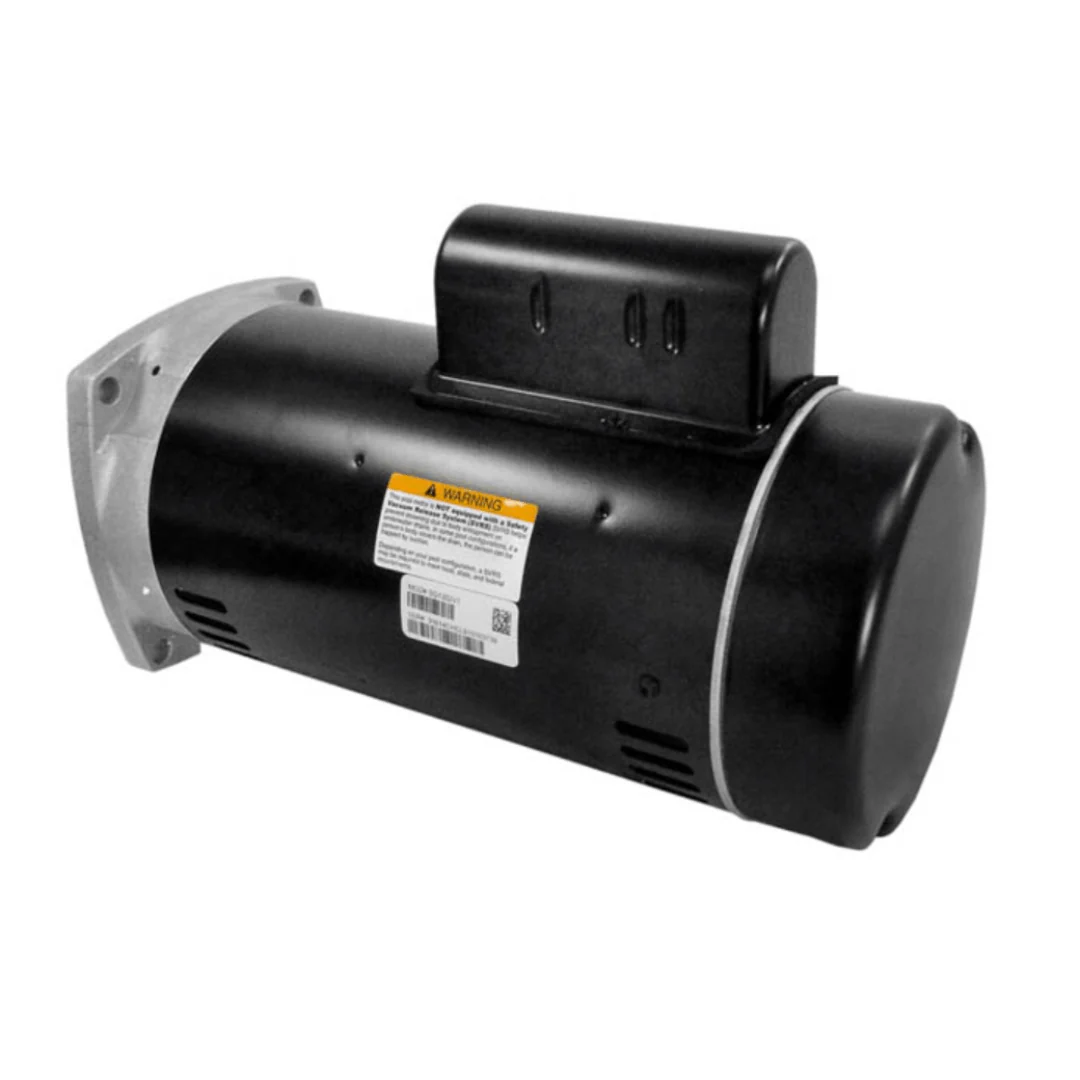

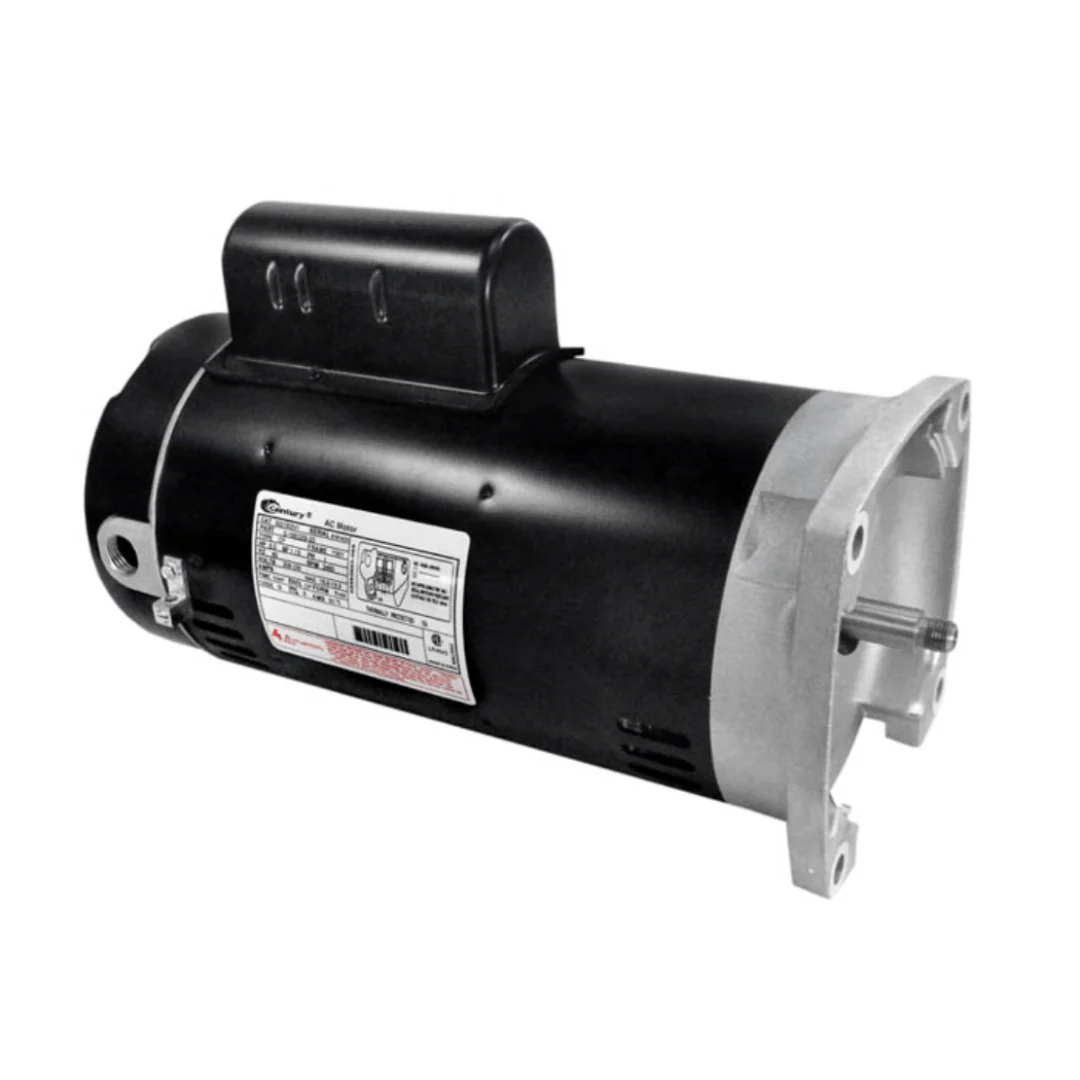

Century SQ1072 Pool Pump Motor, 3/4 HP, 1 Ph, 60 Hz, 230/115 V, 3600 RPM, 48Y Frame, ODP
Century SQ1072 Square Flange Full-Rated Two-Compartment Pool Filter Motor; 0.75 HP; 3450 RPM; 115/230 V; 48Y; Threaded Shaft
Used On:
- Jandy MHP/MHPU Pump PartsĀ
- Sta-Rite Dyna-Pro and Dyna-Pro E Pump Parts
- Sta-Rite Max-E Glas and Dura-Glas Full-Rated Pump PartsĀ
- Sta-Rite Max-E Glas II and Dura-Glas II Full-Rated Pump PartsĀ
- Sta-Rite Max-E Pro Series Pump PartsĀ
- Sta-Rite Supermax Pump PartsĀ
Features:
- Manufactured by Regal Beloit EPC, Inc.
- Service Factor: 1.65
- 15.3/7.6A
- Drip Proof - No Base
- 50 Degrees C
- 303 Stainless Steel Threaded Shaft
- Auto Protector
- Class B Insulation
Specifications:
| Ambient Temperature | 50 deg C |
| Application | Many Sta-RiteĀ®, Red Jacket, Pac Fab and American Products |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 5-5/8 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Satin Black |
| Flange Type | Square |
| Frame | 48Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 15.3/7.6 A |
| HP | 0.75 |
| Insulation Class | B |
| Item | Two-Compartment Pool Filter Motor |
| Motor Design | Capacitor Start |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Number of Speed | 1-Speed |
| Overall Length | 12.13 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Service Factor | 1.65 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341) |
| Sub Brand | CenturyĀ® |
| Thrust Horsepower | 1.24 |
| Type | Full-Rated, UAC |
| Voltage Rating | 115/230 V |
$94.50
Original: $269.99
-65%Century SQ1072 Pool Pump Motor, 3/4 HP, 1 Ph, 60 Hz, 230/115 V, 3600 RPM, 48Y Frame, ODPā
$269.99
$94.50Product Information
